Semi-Airbag Tire Repair Vulcanizer LK-Z001

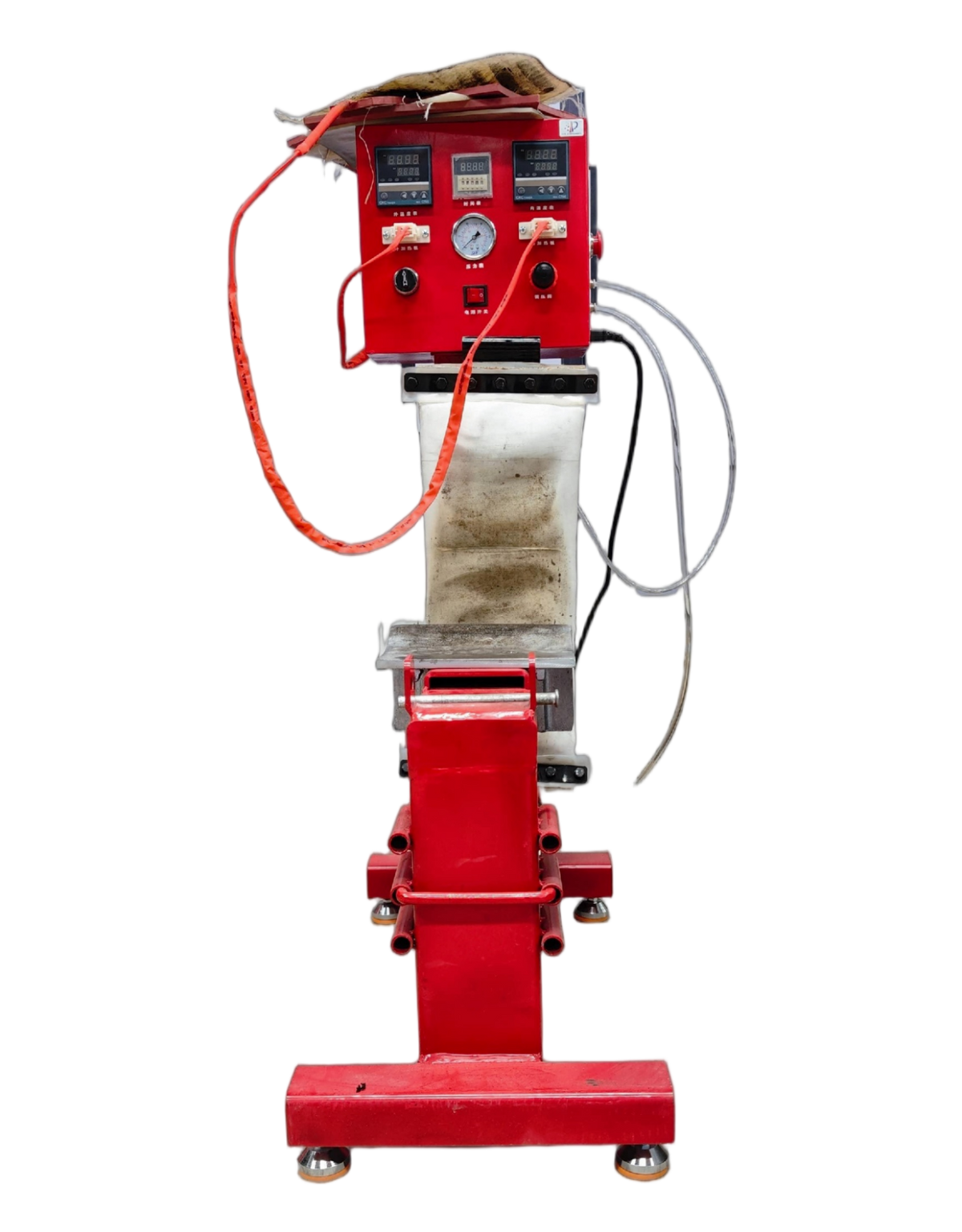

Semi-Airbag Type Tire Repair Vulcanizer (LK-Z001)

The LK-Z001 Semi-Airbag Type Tire Repair Vulcanizer is a professional tire repair machine designed for passenger car tires. Equipped with double heating plates, it provides simultaneous internal and external heating for efficient and consistent sidewall hot-patch repairs.

The machine is suitable for repairing tire wounds up to 10 cm in size and supports passenger car tires ranging from 13" to 22".

Key Features

• Double heating plates for simultaneous internal and external heating
• Suitable for passenger car tires from 13" to 22"
• Repairs tire wounds up to 10 cm in size
• Standard 60-minute vulcanization cycle
• Power consumption of approximately 0.3 kWh per cycle
• Vulcanization temperature of 125°C
• 1-year full machine warranty

Product Specifications

Product Name: Semi-Airbag Type Tire Repair Vulcanizer for Passenger Tires

Model: LK-Z001

Application: Passenger Car Tire Repair

Applicable Tire Size: 13"–22"

Heating Plate Power: 150W

Working Air Pressure: Approximately 3 kg

Vulcanization Temperature: 125°C

Vulcanization Time: 60 Minutes

Power Consumption: Approximately 0.3 kWh per Cycle

Maximum Repair Wound Size: Up to 10 cm

HS Code: 8424.8999

Application Scope

Designed for repairing passenger car tires ranging from 13" to 22". The double heating plate system heats the repair area from both the inside and outside to support consistent vulcanization.

Operation Precautions

1. Prevent Under-Vulcanization: Make sure the inner and outer heating plates fully cover the repair area. Maintain the working air pressure at approximately 3 kg.
2. Proper Cord Fabric Preparation: Apply glue to both sides of the cord fabric to help prevent air leakage and patch cracking under pressure.
3. Allow Vulcanizing Agent to Dry: Wait until the vulcanizing agent is completely dry before attaching the repair patch.

Warranty & After-Sales Support

The machine includes a 1-year full warranty. Non-man-made damage occurring within the warranty period is eligible for free repair according to the warranty terms.

Order Information

MOQ: 1 Unit

Price Terms: EXW
